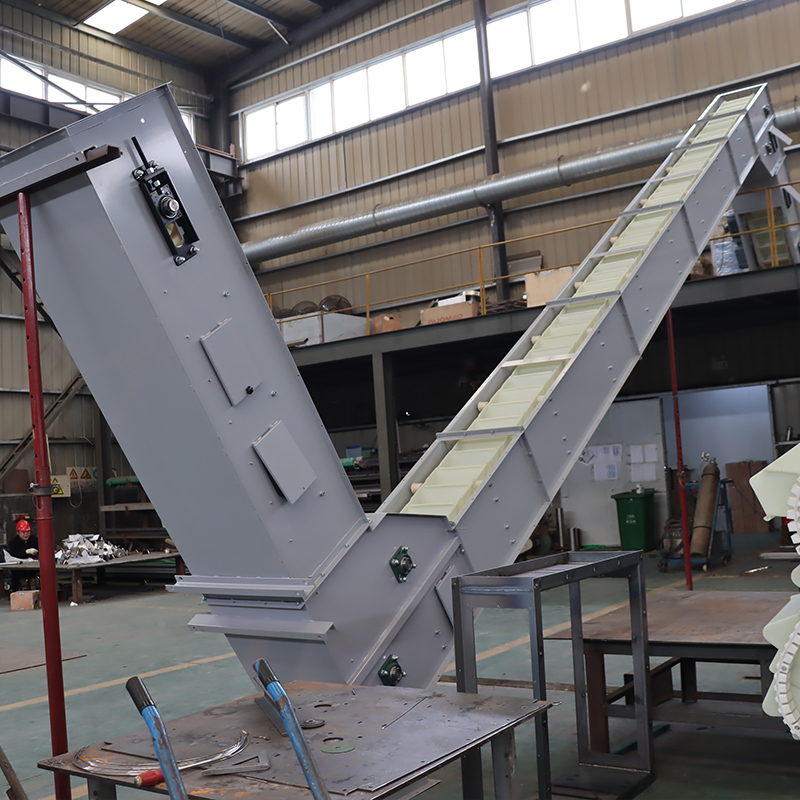

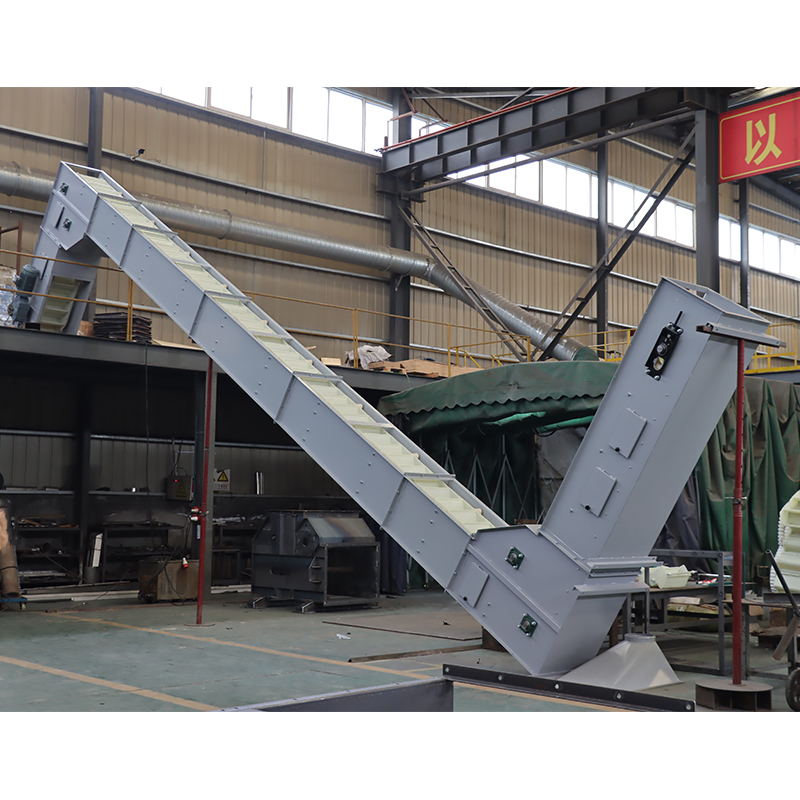

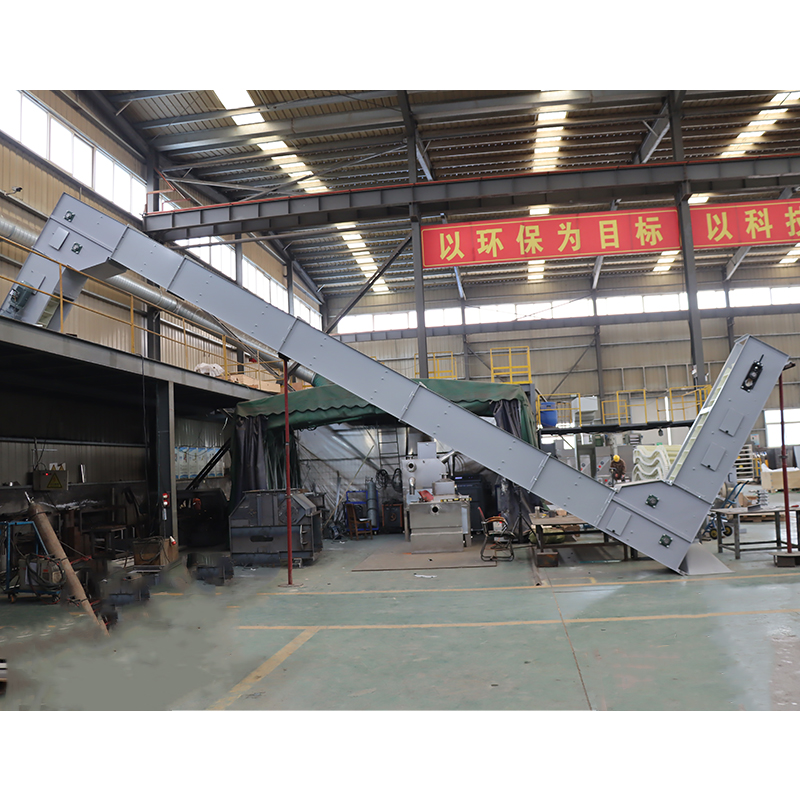

Continuous Sanitary Dust-Proof Pendulum Bucket Elevators

short description:

Continuous Sanitary Dust-Proof Pendulum Bucket Elevators

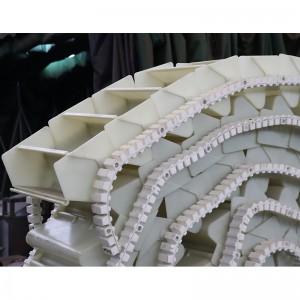

Pendulum bucket conveyors feature exceptionally low-maintenance and low-wear operation. The rubber chain is used in all of our systems to drive the conveyor element.

Particularly in the food industry, the advantages of pendulum bucket conveyors are clear to see. By using rubber chains, no lubricants are required that could contaminate the conveyed materials.

Transportation lengths of up to 50 m vertically or 100 m horizontally have already been created using continuous bucket conveyors.Conveyor capacities of up to 100 m³/h can also be achieved.

Andvatage:

Continuous
-Very stable running
- Small footprint
- High conveying capacity
- Atex design available

Pendulum

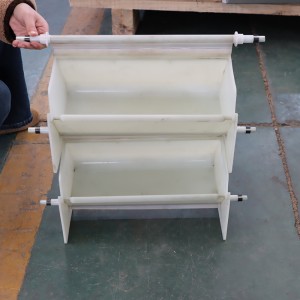

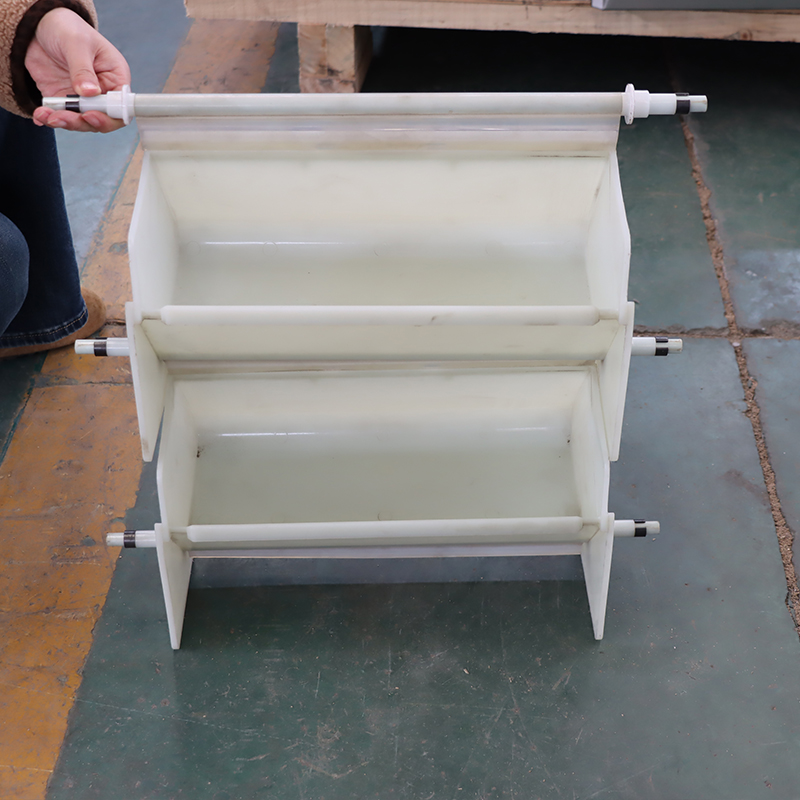

- Buckets can be removed without tools for external cleaning
- Hygienic design made from tubular steel available
- Many different line versions available
- Multiple drop-off points are possible
- For weighed or counted products, the bucket position can be determined reliably at any time (no elongation of the rubber chains!)
- Atex version available

Application Industry:

Food Processing: Bucket elevators are essential for handling various food products, such as grains, flour, sugar, salt, and coffee beans, ensuring gentle and contamination-free transportation.

Agriculture: In the agricultural sector, bucket elevators are used for conveying seeds, fertilizers, and animal feed, streamlining storage and distribution processes.

Mining and Minerals: Bucket elevators are employed in the mining industry for conveying ores, coal, and other minerals, facilitating efficient material handling in challenging environments.

Chemical and Pharmaceutical: These industries rely on bucket elevators for the safe and precise handling of powders, granules, and pellets, maintaining product integrity and purity.

Recycling and Waste Management: Bucket elevators play a crucial role in recycling facilities, handling materials such as plastic, glass, and metal, enabling efficient sorting and processing.
